High efficiency and economical effectiveness.
Easy of operation and maintenance.
The Rigid Casting Base and Column with complete dust protection ensure a finish grinding in high efficiency.
The Direct Drive Interchangable Spindle is supported by Ultra-precision preloaded roller and angular contact ball bearings,which perform the heavy dusty grinding and top quality finish grinding.
Completely sealed bearings need no lubrication,protecting the spindle from abrasive dust.
- Place of Origin: China
- Brand Name: xinhe hongxin
- Model Number: XHXH-2550H

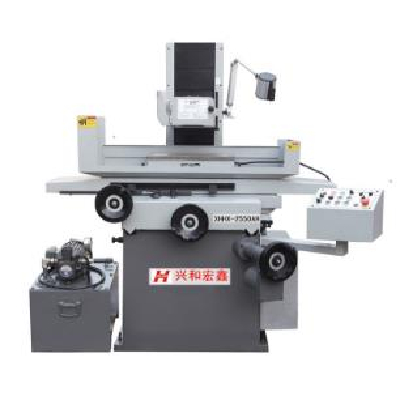

XHXH-2550H High precision surface grinding machine
Max longituditnal travel of table (mm) :540
Max cross travel of table(mm):270
Worktable size(mm) :250 X 500
Distance between spindle and table :510
Scale of handwheel for cross feed: 5 per rew 0.02 per gra
Scale of handwheel for vertical feed:2per rew 0.01per gra
Spindle rotaion speed: 2800R.P.M/3360R.P.M(50/60HZ)
Spindle motor power:2HP
Grinding wheel size:200x(6-20)x31.75
Hydraulic drive motor :2HP
Cross drive motor power:60w
Rapid elevation drive motor power:80w
Package size(W X L X H)mm 1880x1590x2100
Net weight:1500kgs
